Phoenix atex

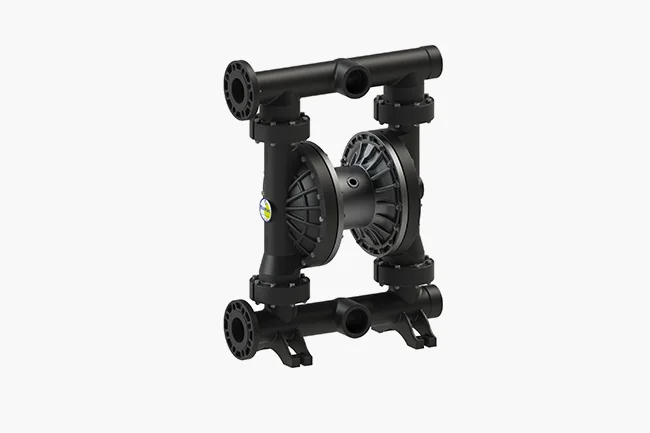

P1000 - ATEX Diaphragm Pump
ATEX CERTIFICATION
- II 2/2 G Ex h IIB T4 Gb
- II 2 D Ex h IIIB T135°C Db X
Performance
PERFORMANCE CURVES
To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory:
The required flow rate of the fluid (Flow rate l/min)
The total prevalence (Head H)
By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
Materials available
PP+CF
Temperature: -20°C +95°C
PVDF+CF
Temperature: -20°C +95°C
ALU
Temperature: -20°C +95°C
SS
Temperature: -20°C +95°C
Ask for advice
Do you need support in choosing the double diaphragms pump most in line with your specific fluid handling needs?
Fill out the form below and you will be contacted by our staff.
The best solutions, certified
